GL Photometer 3.0 + Flicker

The GL PHOTOMETER 3.0 + Flicker is a high sensitivity and high sampling rate photometer capable of extensive measurements of light flicker in addition to regular photometry.  Such featuresas wide dynamic range (0,001 – 10 000 000 lx), uncertainty of spectral response (f1’) less than 3 % (Class A) and cosine correction (f2’) below 1,5% (class A)allow even the most demanding measurement tasks to be solved.

Standalone fast photometer
The new GL Photometer 3.0 + Flicker can be used as a standalone photometer. It has been prepared to be used in many applications that require a precise measurement of illuminance on surfaces. It can be intuitively controlled by GL Spectrosoft or a dedicated API for external software. Connection by USB cable, provides power to the device, so no external sources or batteries are required.

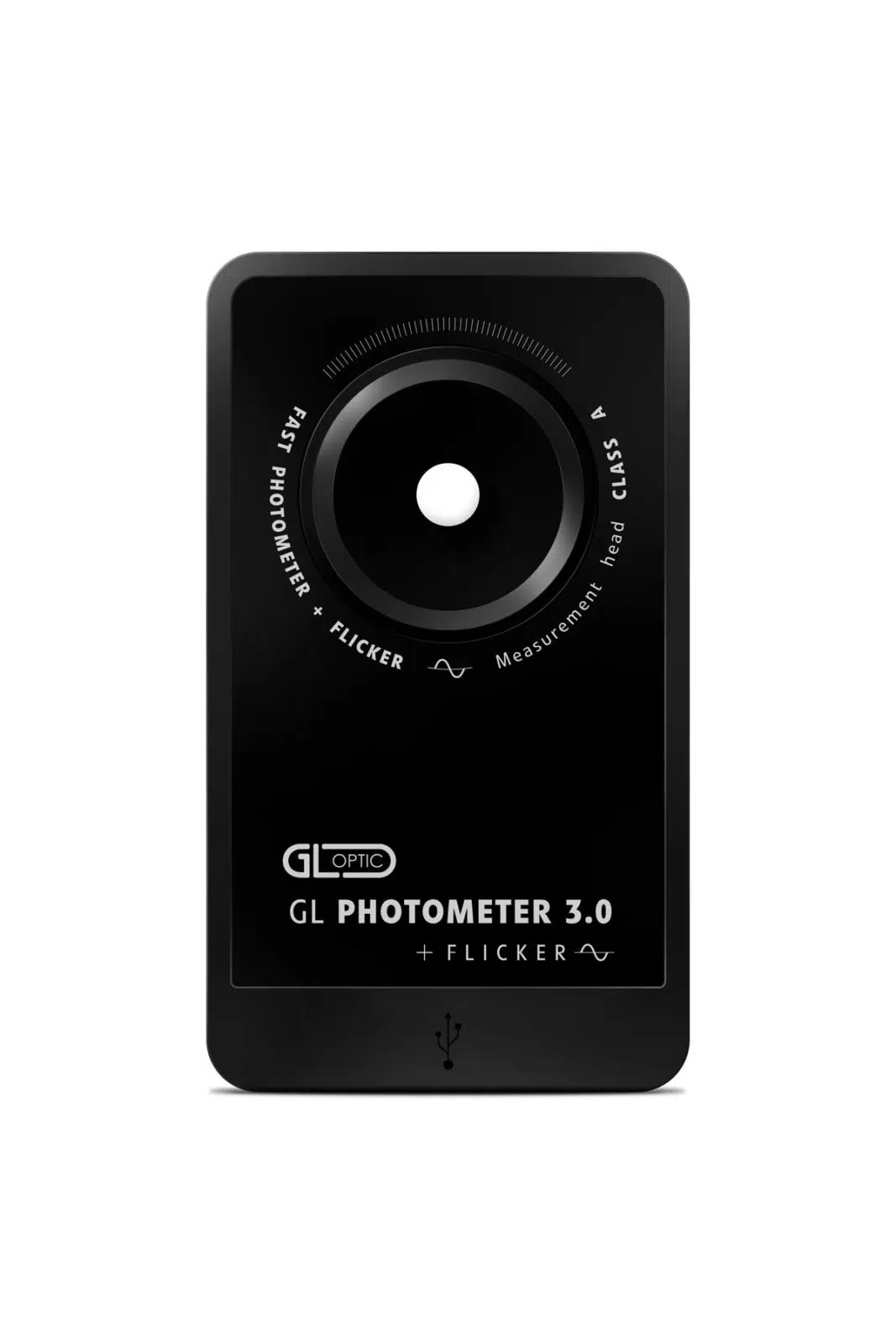

GL-Photometer-3.0-scaled

SPECIFICATION

MEASUREMENTS
Measurement range 0,001 lx … 10 000 000 lx
Resolution 4 significant digits
Uncertainty of spectral response (f1′) Class A < 3%
Uncertainty of cossine correction (f2′) Class A < 1,5%
Sampling frequency 125 kHz
A/D conversion 18 bit
PROPERTIES
Software GL Spectrosoft or API for external software developers
Dimensions (H x W x D) 115 mm x 65 mm x 51 mm
Weight 350 g
Connectivity USB A-B
Power USB , 5V <200mA

Application

  •    High quality flicker measurements including long term sampling

  •   Integrating sphere photometer

  •   High precision illuminance measurements
