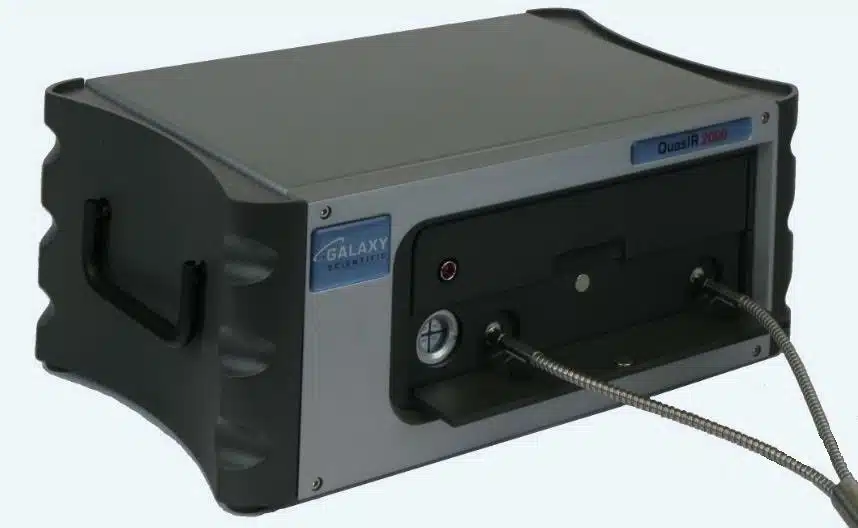

QUASIR 2000
Portable Fiber Optic FT-NIR
LThe QuasIR 2000 Portable Fiber Optic FT-NIR Spectrometer was designed from the ground up to offer the industry a new kind of NIR analysis solution – a solution that brings together the portability required to move NIR analysis closer to point-of-need, combined with unmatched spectroscopic performance for the fastest and most accurate results. It delivers a wide range of technical innovations including our PermAlign™ interferometer optics, industry leading sampling accessory designs, and new concepts in software and algorithms such as our Advanced-ID™ software for low concentration targeted screening.
The QuasIR™ 2000 is a versatile design and can be used with different types of fiber optics probe for fast NIR analysis in liquid or solid processes. It can be used at different locations within your plant and process. From incoming materials testing, to NIR analysis in your lab, to instantaneous process monitoring on-line.
Specification
General Specification | Value | Alternate Value/Benefit |
Dimensions (W x D x H) | 35.5x 24.1 x 14.5cm (W x D x H) | 13.98x 9.49 x 5.71 in |
Weight | < 8.2 kg | < 18 lbs. |
Operating Temperature | 0°C- 40°C, < 95% humidity, Non-condensing | 32° F to 104°F |
Sampling Mode(s) | Reflectance or transmission measurements in solids, pastes, and liquids | Maximum signal and collection efficiency |
Sampling Device | Triggered Fiber Optic Probe | Maximum signal and collection efficiency |
Automated Verification & Instrument Diagnostics | Automatic, internal, 4-position validation wheel | Continuous performance monitoring |
Wavelength Range | 12,000 – 4,000 cm-1 | 32° F to 104°F |
Detector | TE cooled InGaAs |
Key Benefits
- Unmatched instrument-to-instrument consistency and direct method transfer so you can expand your QuasIR™ fleet with confidence
- Automatic Performance Testing Unit provides an easy and automated way to monitor your instruments performance
- Innovative diffuse reflectance probe with patterned fiber layout increases probe reproducibility
- Standard SMA type 905 connectors allow use of many commercial probes
- Spectral Sage™ software suite combines the ease-of-use needed for everyday analysis with feature-rich functions for advanced method developers
- Optional Symbion DX™ and RX™ Process Analytical Software Suite; manages the measurement process during online analysis
- Low Cost of Ownership:
- 20,000-hour user replaceable NIR source
- > 10-year laser life
- > 10-year interferometer drive
- User replaceable desiccant
- Operated by standard Windows™ PC
