GONIOMETER

GL GONIO SPECTROMETER GLG A 50-1800

The GLG A 50-1800 goniophotometer has been designed for every day application in R&D laboratories and product compliance testing center labs where dependable data is provided by truly user-friendly photometric instruments system.

The industry standards this goniophotometer system is ready to photometric testing of vehicle LED and other types of lamps luminous intensity distribution in H, V coordinates. Robust design, user friendly interface and top-level accuracy available for fast developing industries.

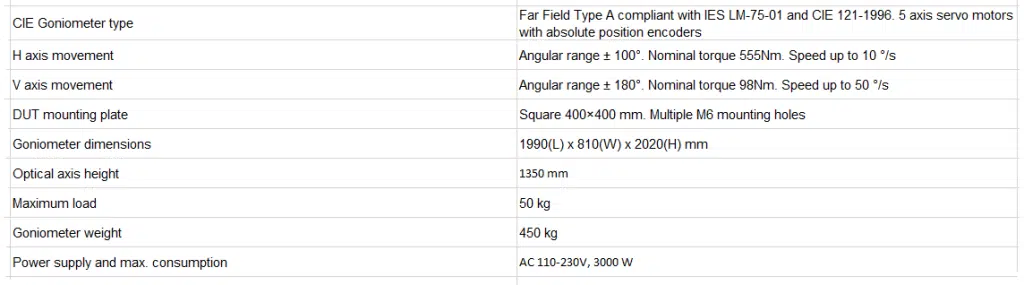

SPECIFICATION

Application

  •     Light Intensity Distribution measurement

  •    Angular color uniformity testing

  •    CCT, Duv, CRI, x, y

  •   Photometric data in LTD

GL GONIO SPECTROMETER GLG 30-1800

The GLG 30-1800 combines the functionality of a goniophotometer with the features of a spectroradiometer to measure brightness and to check angle dependence luminous intensity distribution.

The Specifically engineered for lighting manufacturers who want to stay ahead of the competition and take control of their product development earlier, the GLG 30-1800 light goniometer offers exceptional value. For many companies, the payback period is less than 5 years when they compare the purchase of a system vs. sending lamps to an external lab. It also leads to more frequent characterization resulting in better products that reach the market faster.

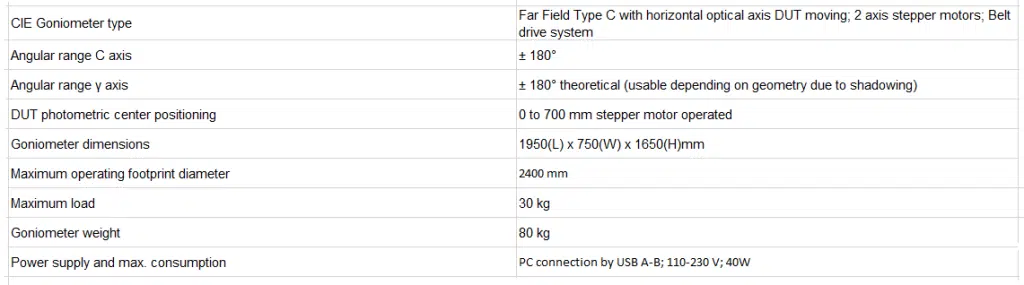

SPECIFICATION

Application

  •     Light Intensity Distribution measurement

  •    Angular color uniformity testing

  •    CCT, Duv, CRI, x, y

  •   Photometric data in LTD

GL GONIO SPECTROMETER GLG 4-500

The GLG 4-500 version is a table top light goniometer specifically designed for LED modules and component testing. This setup can also be used for  smaller luminaires measurements. The automated, PC based system can hold devices up to 4-7kg and 500mm diameter and measures with an angular resolution of 0.1° and C-plane and λ angle +/- 180°

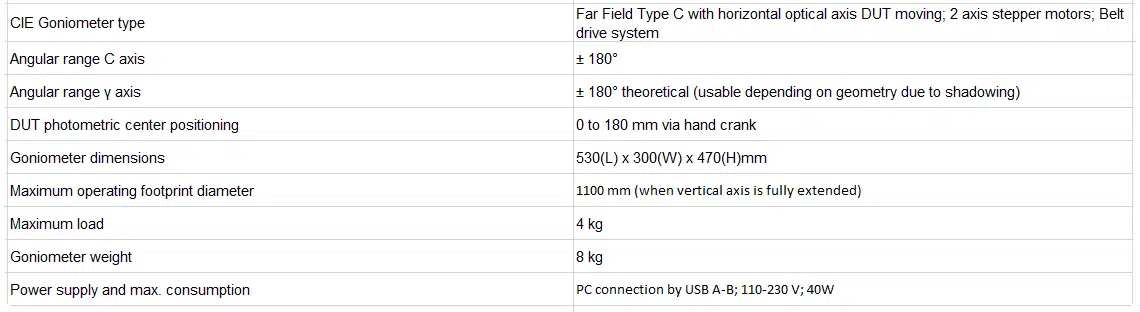

SPECIFICATION

Gonio-1

Application

  •     Light Intensity Distribution measurement

  •    Angular color uniformity testing

  •    CCT, Duv, CRI, x, y

  •   Photometric data in LTD

For more information please visit: https://gloptic.com/
