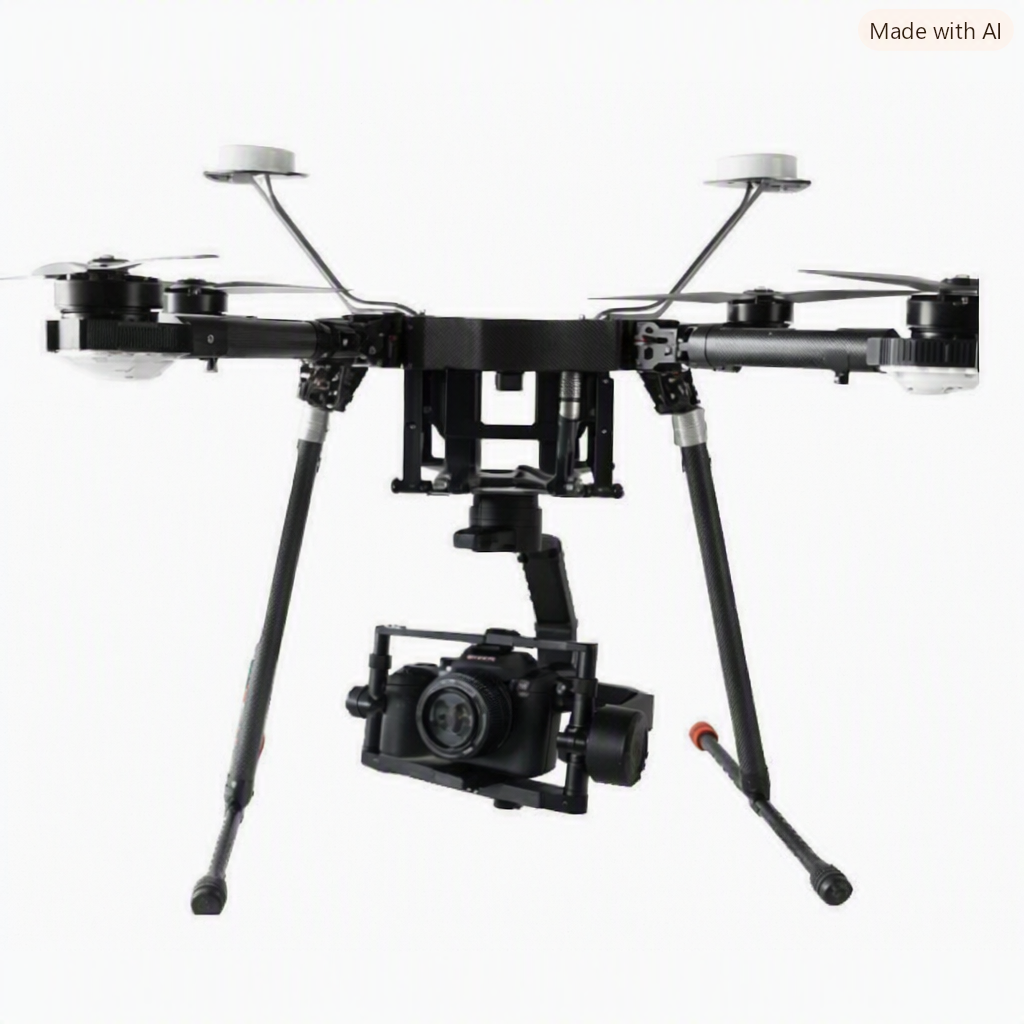

UAV MULTISPECTRAL IMAGER

The UAV Multispectral Imager is a multi-spectral imager independently developed and designed for advanced spectral imaging applications. The system covers 12–14 band spectral images from visible light to near-infrared. The system relies on a multi-eye lens and can complete the acquisition of various bands without mechanical operation; in addition, it also has a built-in lithium battery, a central processing unit, etc., and an optional auto-focus system. It also has high-resolution, high-definition, high quality and other characteristics.

The UAV multispectral imager adopts a high-resolution CCD imaging device, which has clear imaging and less noise, and images of various bands are simultaneously imaged without obvious offset, which is especially suitable for high-altitude and large-scale imaging.

The camera adopts advanced optics and image processing technology to provide multi-spectral imaging capability of at least 12 channels.

Portable Hyperspectral Imgaer Get Best Price

Specification

Index9600-129600-14
Spectral range405~850 nm405~850 nm
Band distribution405、430、450、480、510、530、550、570、650、685、710、850nm405、430、450、490、525、550、560、570、630、650、685、710、735、850nm
Spectral resolutionSuperior to15nmSuperior to15nm
Multispectral Chromaticity Band Resolution (Single Lens Composite)3600 x 22002780 x 2650
Number of spectral channels1214
Dynamic Range12bit16bit
Imaging lensAuto focus
F#65.6
Effective focal length25mm21.8mm
H-FOV35°25°
V-FOV26.6°25°
D-FOV45.9°32.4°
Imaging speed20 bands/s20 bands/s
Lithium battery life>6 h>6 h
Data storageSD Card(256GB,512GB optional)
Data interfaceUSB3.0
Power supply12VDC,3A
Visible light camera resolution>800 CMOS>750 CMOS
Flying platformCustomized version of long-time high-load large 6-rotor UAV
PTZThree-axis DC brushless motor high stability gimbal
Number of rotors6 rotors
Take-off and landing modeVTOL
Wheelbase1500 mm
Maximum load6 Kg
Ceiling5000 m
Drone size1650 X 1410 X 500 mm

Applications

  • Agriculture and Crop Management
  • Environmental Monitoring
  • Land use and Planning
  • Water Resources Management
  • Natural Disaster Monitoring
  • Resource Exploration
  • Areas such as Climate Research, Ecology, Archeology and Remote Sensing
