HR SPECTROMETER

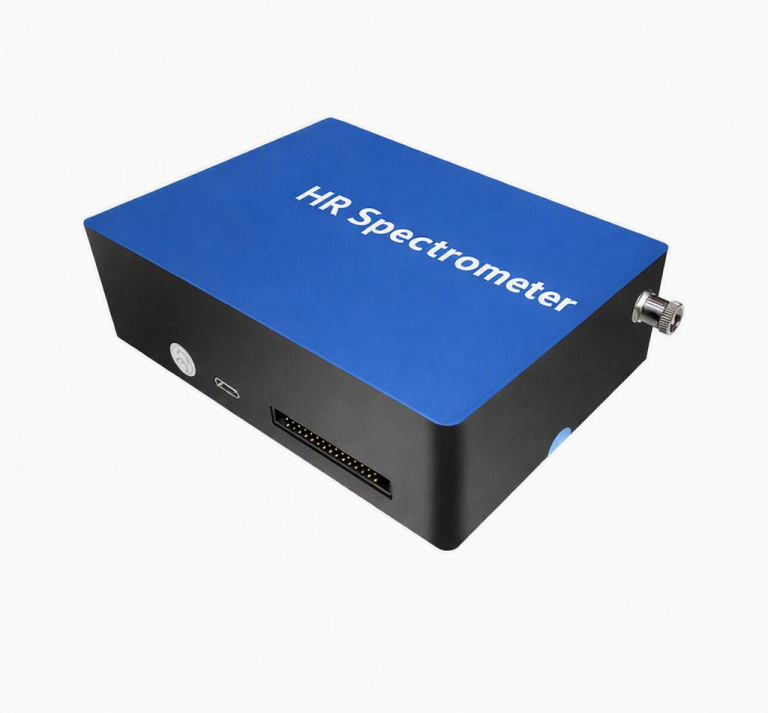

HR Spectrometer
The Ultra High Resolution Spectrometer is UV-enhanced and designed with extra-high resolution in the UV region. It features an M-shaped optical bench with superior resolution and low stray light, providing a resolution of up to 2048 pixels.
The Ultra High Resolution Spectrometer is an ultra-high-resolution micro spectrometer developed by Optosky. Its highest resolution can reach 0.1 nm, making it suitable for a wide range of high-resolution applications. It also offers high reliability, ultra-high speed, low cost, and excellent cost performance. It can be used in various environmental applications, including online testing.
The Ultra High Resolution Spectrometer is ideal for fast detection due to its high A/D converter frequency and high-speed data transmission. Its built-in memory chip stores algorithms designed to improve performance, including wavelength calibration coefficients and linearity coefficients. The spectrometer operates with a single +5V DC power supply through USB or UART.
The Ultra High Resolution Spectrometer comes with a free SDK for customer self-development. Optosky supports C++, C#, LabVIEW, and Linux SDKs, making it convenient for OEM customers to develop and integrate customized solutions.
SPECIFICATION
Detector | |
Detector type | Linear CMOS |
Effective | 2048pixels |
Pixels dimension | 14X200 µm |
Detector | Hamamatsu |
Sensitivity | 1300(lx.s) |
Optical | |
Optical | 0.1-2 nm（decide |
Incident | SMA905 |
Dynamic range | 8.5×10^7(system); |
confocal | 75mm |
Numberical | 0.06 |
Working | < 90%NC |
Trigger | YES/IN and |
Cooling | uncooled |
Full Well | NA |
Scanning rate | < 1 kfps |
Wavelength | 200-1000nm, |
Physical | |
Dimensions | 124×90×37mm^3 |
Weight | 0.553kg |
Sealing | Anti-sweat |
Optical | |
Optical | M-type (like |
Incident slit | 5,10,25,50,100,150,200 |
Raman | |
Application
· Plasma luminescence
detection;
· LIBS
· Raman spectrum
detection;
· Wavelength
monitoring, laser, led, etc
· Water quality
analyzer
· Ultraviolet flue gas
analyzer
· Led sorter and color
detection;
· Micro and fast
spectrophotometer;
· Spectrum analysis,
radiation spectrophotometry and spectrophotometry
