COMPACT FT-IR

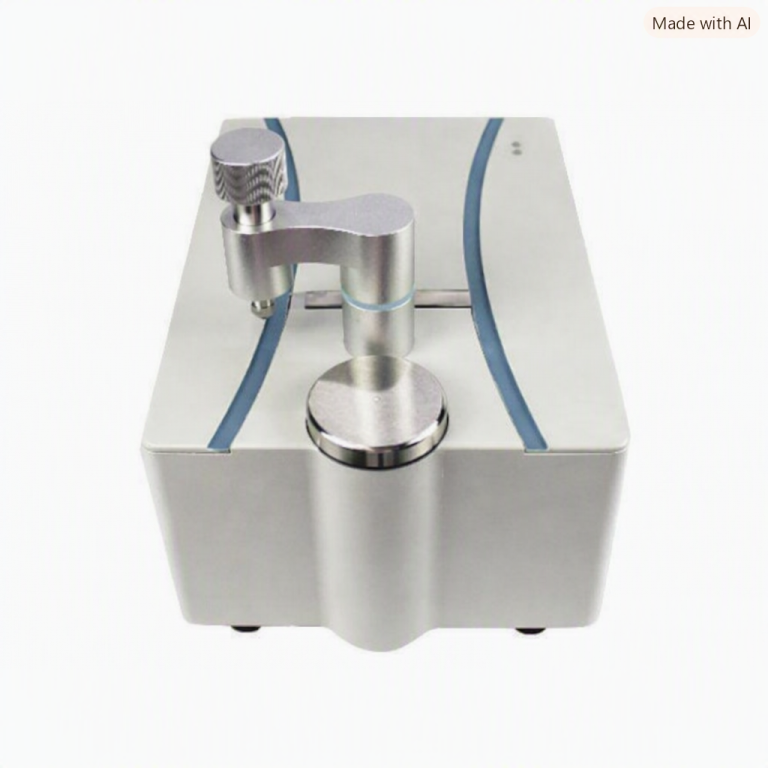

Compact FT-IR Spectrometer
The FT-IR spectrometer offers a resolution of 1 cm⁻¹ with a compact design suitable for field applications.
It is widely applied for:
- Online, real-time monitoring of industrial gases
- Identification of unknown narcotics, drugs, and explosives for law enforcement
- Oil product quality identification and analysis
- Manufacturer and material identification
- Gemstone classification
- Identification and analysis of relics, museum antiques, and cultural artifacts
The system strictly satisfies Design Qualification (DQ), Installation Qualification (IQ), Operation Qualification (OQ), and Performance Qualification (PQ) verification standards.
Key Parameters
- Michelson interferometer with wear-free operation and reliability backed by a 10-year guarantee
- Cube-corner mirror design provides strong resistance to mechanical and temperature vibrations
- High-stability optical system with a gold mirror, improving reflectivity by more than 5% compared with traditional aluminum mirrors
- High-sensitivity DTGS detector with reliable temperature control
- Solid-state laser with a reliable service life of up to 10 years
- Vacuum-cooled ceramic IR light source with high performance
SPECIFICATION
L
|
Infrared spectroscopy |
|
|
SNR |
40,000 : 1 1 min sample measurement, 4 cm-1,
peak-to-peak |
|
Built-in Li-battery life span |
>8 hrs |
|
System |
Windows 10 |
|
parameter |
|
|
Power |
AC220V / 50Hz |
|
ftir spectrometer |
|
|
Spectral Range |
7800~350 cm-1 |
|
Resolution |
<1.0 cm-1 |
|
Wave number accuracy |
< 0.01 cm-1 |
|
Software |
Infrared control,spectrum processing.
Quantitative analysis of multi-component samples. Auto inspect software.
Advanced macro programming software. online continuous monitor of optical
components, say laser light source, sensor , beam splitter so as to ensure
best working status. Auto remove air water and CO2. |
Applications
FTIR is widely applied in environmental monitoring, environmental chemistry, and environmental pollution analysis. It can be used for online monitoring of gas pollutants such as H₂O, NOx (NO₂, NO, N₂O), HF, SO₂, CO, HCl, NH₃, and CO₂. It can also monitor airborne particles, including their types and concentrations, as well as environmental equipment such as vacuum cleaners, desulfurization equipment, and depickling equipment.
Criminal Investigation
FTIR enables rapid detection and identification of explosive-related field evidence in potentially dangerous environments, including black powder, nitrolite, TNT, hexogen, and PETN.
Drug Enforcement
FTIR can be used for screening and identification of substances including morphine, heroin, cocaine, ice (crystal methamphetamine), ketamine, and new psychoactive substances (NPS).
Gemstone & Jade Identification
FTIR supports the classification and identification of gemstones and jade.
Quality Control
FTIR can be used for quality control (QC) to check whether materials comply with applicable standards and specifications.
Unknown Material Identification
FTIR can identify unknown materials by comparing detected substances against a reference library, helping determine the name of the detected material or contaminant.
