Drone & Gas Leak Detector

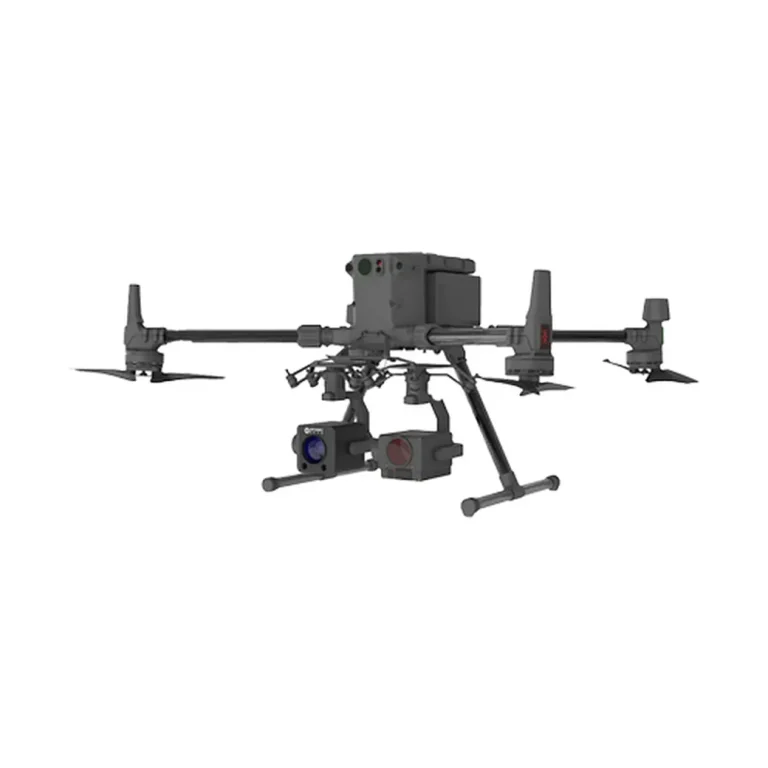

UAV-borne laser methane

The UAV-borne laser methane telemetry system is a new generation of intelligent inspection equipment for methane leaks launched by Optosky. It consists of a high-performance laser methane telemeter, a four-rotor high-stability UAV, a high-stability pan-tilt, a large-capacity storage system, a wireless image system, and a ground control system, which can provide a new perspective for pipeline network inspection.

 3AXIS three-axis stabilized gimbal, the gyroscope detects the inclination angle of the drone, and the attitude processor controls the three motion axes of the gimbal to balance the flight attitude, so that the telemetry sensor always points in the same direction no matter how the aircraft shakes. It is the basis for effective detection of machine detection system.
The solution can provide intelligent, accurate and reliable inspection solutions for complex and dangerous environments such as factories, pipelines, residential buildings, urban complexes, and mountains. Fully guarantee the safety of personnel and equipment. The intelligent application software on the ground side receives real-time feedback images and detection data, and immediately reports to the police when leaks are found. At the same time, it records inspection tracks and alarm events, and automatically generates inspection reports. The system supports planned flight and manual flight control.

Features

  • With 0.01S response time
  • Effectively monitor methane leakage air mass in low-altitude areas below 100m;
  • Ppm level high precision, more than 5ppm.m
  • Single target gas, only sensitive to methane;
  • Highly integrated flight control and methane leak inspection functions
  • Highly automated
  • Highly open
  • Super long flight time
  • Real-time data display
  • Data wireless transmission function

Application

  • Oil & Gas Pipe line Detection for gas company
  • Urban Natural Gas Pipeline Detection
  • Industrial Park Detection
  • Landfill Detection
  • Greenhouse Gases Detection
  • Refinery Detection
Portable Hyperspectral Imgaer Get Best Price

SPECIFICATION

L

Laser Methane Telemeter（S350-W2）

Detection object

CH4

Detection principle

TDLAS

sensitivity

5ppm.m

Measuring range (CH4)

0-10000ppm.m

responding speed

0.01s

telemetry distance

100m

supply voltage

5V

Output Data

Methane concentration value, light intensity, sensor internal temperature

Working temperature

-10℃~＋55℃

Working humidity

＜95%RH，non-condensing

Enclosure protection class

IP54

Instrument weight

300g(removable shell）

size

66mm*57mm*94mm

Camera (DJI Zenmuse H20)

Angular jitter

±0.01°

Function

Zoom+Wide Angle+Laser Ranging

Controllable rotation range

pitch：-120°-30° translate：±320°

installation method

detachable

Maximum zoom factor

200×（DFOV：0.5°，equivalent focal length：4800mm）

Eye Safety Level

Class 1M（IEC 60825-1:2014）

Working temperature

-20℃-50℃

degree of protection

IP44

Size

150×114×151 mm

Weight

678±5°

Gimbal (DJI X-Port）

Features

High-precision three-axis gimbal

Integrate all functions of PSDK2.2

PTZ parameters can be customized

Remote control custom button mapping

Can be directly controlled by DJI PILOT/ MSDK/ OSDK
