MINIATURE FT-NIR

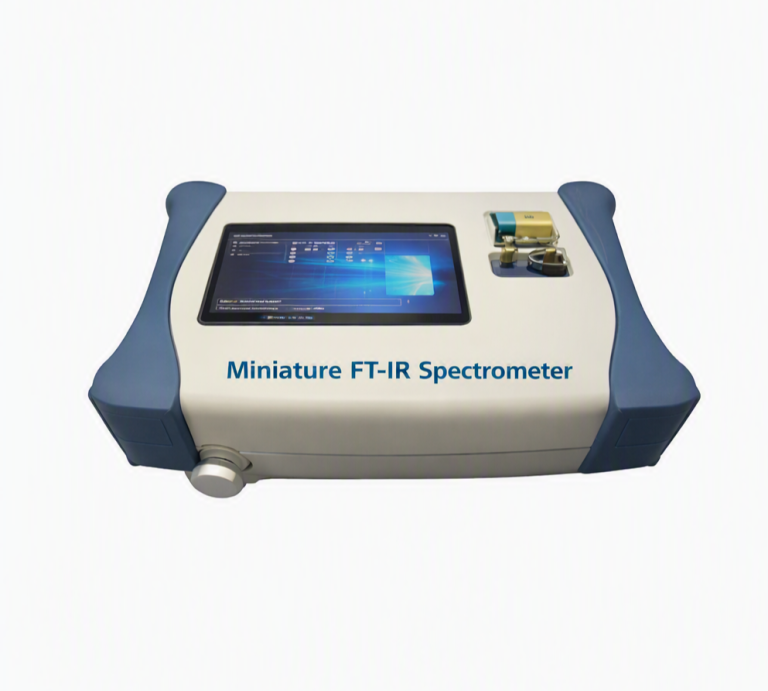

Miniature FR-IR Spectrometer
The Miniature FT‑IR Spectrometer is the world’s most compact and portable field‑ready FT‑IR system, engineered for rapid and precise compound identification.
Key Features
-
Super Compact Design: Measuring only 26 cm × 16.3 cm × 12.8 cm and weighing under 4.5 kg, it’s ideal for field work and outdoor experiments.
-
Large 7‑Inch Touch Screen: Intuitive interface for effortless operation and data visualization.
-
High Spectral Resolution: Delivers detailed, accurate results with superior spectral analysis.
-
Durable and Versatile: Built with a pure diamond ATR crystal in stainless steel, capable of analyzing solids, powders, fibers, liquids, and pastes.
-
Low Power Consumption: Optimized for energy efficiency, perfect for remote field settings.
-
Elegant and Functional: Features a fully automatic ATR pressure device and a comfortable handheld terminal for seamless use.
This instrument combines portability, precision, and durability, making it indispensable for environmental testing, chemical analysis, and on‑site research.
SPECIFICATION
|
Spectral Range |
7800-350cm-1 |
|
Resolution |
superior to 1cm-1 |
|
Wave number accuracy |
superior to 0.01cm-1 |
|
Interferometer |
High stability cube-corner interferometer, permanent
collimation, service life more than 10 years |
|
Beam splitter |
Zinc selenide (ZnSe) moisture-proof beam splitter for
mid-infrared |
|
Detector |
Moisture-resistant high-sensitivity DLaTGS detector with
built-in ADC |
|
Infrared light source |
Long-life mid-infrared ceramic light source |
|
Laser |
Solid-state laser with a lifetime greater than 10 years |
|
ATR accessory |
Software fully automatic control pressure head, equipped with
domestic pure diamond crystal, wear-resistant, corrosion-resistant, easy to
clean, can meet the rapid measurement needs of solid and liquid samples |
|
Software |
An all-Chinese version processing software with intelligent
one-click direct evaluation and storage function. Functions also include:
infrared spectrum measurement function, spectral data preprocessing function,
fast spectrum comparison function, user-built standard spectrum library
function, quantitative analysis function, automatic diamond/CO2 absorption
peak function, intelligent spectrum recognition function, automatic report
Create and print functions, etc. |
|
Database |
Equipped with a professional infrared spectrum database, more
than 10,000 pieces, including the spectra of precursor chemicals,
cannabinoids, fentanyl, new active drugs, dangerous chemicals and other
substances, among which the spectrum of drugs exceeds 2500 sheets |
|
Dimensions |
26cm×16.3cm×12.8cm (including automatic pressure head) |
|
Weight |
<4.5kg |
Applications
- Spectral range 7800-350cm-1
- Spectral resolution 1 cm-1
- 7-inch touch screen
- WIFI, Bluetooth, etc
- One-touch measurement, evaluation and storage
- Standard IR spectra database with over 10,000 spectra
- Real-time display of battery level, charge and discharge status, and temperature
- 26cm×16.3cm×12.8cm; <4.5Kg
FEATURE
Criminal Investigation: Quickly analyze explosives and dangerous chemicals at the scene (e.g., black powder, ammonium nitrate, TNT, hexogen).
Drug Detection: Rapid identification of drugs and new psychoactive substances (e.g., morphine, heroin, methamphetamine, cocaine).
