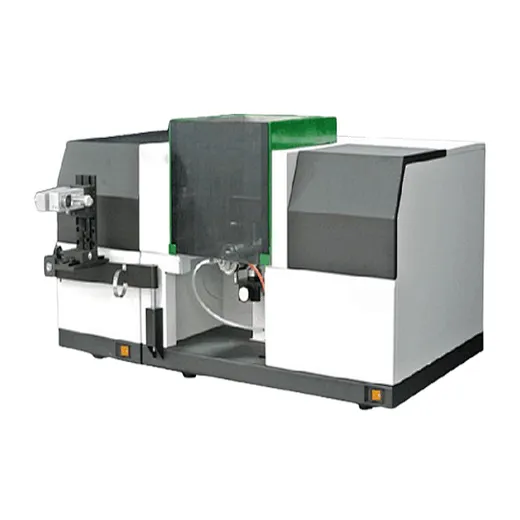

Furnace Atomic Absorption Spectrophotometer
Graphite Furnace Atomic Absorption Spectrophotometer
The Graphite Furnace Atomic Absorption Spectrophotometer is a brand-new product carefully developed by Optosky.
Its multimedia graphite furnace visualization system allows users to monitor the dynamic evolution of samples during the drying, ashing, and atomization processes inside the graphite tube. It also enables convenient observation of the autosampler capillary needle’s optimal position and insertion depth, as well as the platform’s position inside the graphite tube, helping ensure analytical accuracy and extend graphite tube life.
Featuring an advanced optical path design, the integrated suspended shock-absorbing optical platform improves shock resistance and minimizes the impact of temperature changes on the optical system, ensuring stable optical signals. The instrument supports 85-position automatic sampling and online dilution, reducing manual operations and improving analytical efficiency.
Additionally, its six-lamp automatic turret enables rapid multi-element analysis. An advanced and reliable safety protection system helps safeguard operators. With excellent performance, easy operation, accurate measurements, and stable operation, it meets a wide range of analytical requirements.
The instrument is widely used for quantitative elemental analysis in rare earth and precious metal analysis, environmental protection, water quality testing, alloy materials, building materials, medical and healthcare fields, universities, and scientific research.
Features
-
Graphite furnace visualization technology
-
Advanced and reliable safety protection system for operator safety
-
Advanced optical path design
-
High-performance automatic sampler supporting 85-position automatic sampling and online dilution to improve analytical efficiency
-
Rapid multi-element analysis
Applications
-
Minerals: Rare earth analysis and precious metal analysis
-
Environmental Analysis: Environmental protection and water quality testing
-
Materials Science: Alloy materials and building materials
-
Scientific Research: Quantitative elemental analysis in healthcare, higher education institutions, and scientific research labs
SPECIFICATION
Model | AS2000 |
Wavelength Range | 190～900nm |
Grating Line Density | 1800 lines /mm |
Absorbance Range | 0–2.5ABS |
Wavelength Repeatability | ±0.1nm |
Wavelength Accuracy | Full spectrum ±0.2 nm |
Optical System | Integrated optical platform, fully enclosed optical system (single beam) |
Detector | Photomultiplier tube |
Resolution | Able to separate manganese doublet lines (279.5 and 279.8 nm) with a spectral bandwidth of 0.2 nm and a valley-to-peak energy ratio of <30% |
Spectral Slits | 0.1nm,0.2nm,0.4nm,1nm,1.2nm.2.0nm（automatically switchable) |
Background Correction Technology | D2 background subtraction (background signal 1 ABS, background reduction capability ≥50 times) |
Static Baseline Drift | ≤0.004ABS/30min（ Cu） |
Lamp Holder | 4-lamp turret |
Characteristic Concentration （Copper） | ≤0.025ug/ml |
Measurement Repeatability（Copper） | ≤0.5%（Cu，Absorbance＞0.8ABS） |
Detection Limit | Cd ≤0.3pg |
Gas Flow Control | Needle valve control |
Safety Protection | Automatic gas cut-off for low pressure, power interruption, abnormal flameout, and burner mismatch; |
Background Subtraction Method | Self-absorption and deuterium lamp background subtraction methods can correct 1A background. When the background signal is 1A, the background deduction ability is ≥50 times |
Burner | Air-acetylene flame burner 100 mm |
Ignition Method | Automatic ignition |
Ignition Dynamic Baseline Drift | ≤0.004ABS/30min(Cu) |
Dimensions | 700*500*530 (mm) |
Weight | 80 kg |
